HYDRAULIC ROTARY JOINTS / VALVES
 Hydraulic
Rotary Joints are used for conveying
fluid under pressure from a stationary
source to a to a rotating elements or Vice
versa. They are also referred to as
Rotating Unions, Swivel Joints etc.
Tornado rotary joints are designed with
sealing on the diameter or the rotating
part, and specific seal designs are
selected based on the operating
conditions like rotating speed,
operating pressure , nature of
application etc. This seal design has
several distinct advantages over the
contemporary face selling designs
especially for high pressure low speed
applications, like the possibility of
having multiple ports which can be
pressurized simultaneously, less
susceptibility of fluid contamination,
Higher pressure rating etc. Tornado
Rotary unions are available with maximum
pressure rating of 350 Kg/cm2,
speeds up to 3000 rpm and flow
capacities up to 250 lpm.
Applications
- Earth
Moving Equipment
- Hydro
Electric Turbines (Kaplan type)
- Material
Handling Equipment
- Machine
tools
- Special
purpose Machines etc.
- Mobile Cranes
- Wagon Tipplers
- Test Rigs & Simulators
- Automation
- Mining Equipments
 HYDRAULIC ROTARY JOINTS
Rotary Joints designed for relatively low pressure high speed operations.
Max Pressure : 100 Bar
Max Speed: 2000 rpm
Max Number of Ports: 02
Maximum Flow: 150 lpm
Typical Applications
- Machine Tools
- Hydro-electric Turbines
- Material
Handling Equipment
- SPM's etc
 HIGH PRESSURE SWIVEL JOINTS
Swivel joints are suitable for applications which requires 360° continuous rotations and transfer of fluid under high pressure
Max Pressure : 350 Bar
Max Number of Ports: 12
Maximum Flow: 250 lpm
Typical Applications
- Hydraulic Excavators
- Earth moving & construction equipments
- Mobile Cranes
- Material
Handling Equipment
ROTARY DISTRIBUTOR VALVES - JOINTS
Rotary distributor valve - joints are rotary joints designed for Machine tool / job clamping applications. They are also available with an intergral rotary valve for Rotary Transfer Machining Systems.
Max Pressure : 350 Bar
Max Number of Ports: 110
Maximum Flow: 40 lpm
Typical Applications
- Rotary Transfer Machining
- Machining Centres
- Rotary Indexing Tables
- Pallet Changers & SPM's
|
|
|
|
 |
|
|
|
| PRODUCTS APPLICATION |
| |
|
Plastic injection moulding machines |
| |
|
Honning head drives |
| |
|
Net Winch Drives in fishing vessels |
| |
|

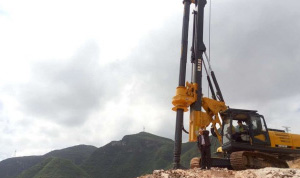

Bore well drilling rigs |
| |
|
